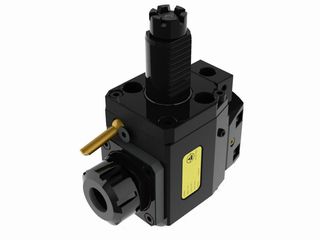

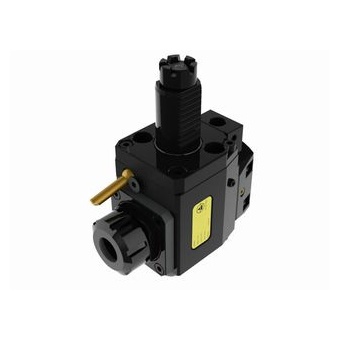

◎ VDI40-MT-ER32 Radial Driven Tool Holder_Int.
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM
◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM
◎ Internal Coolant：30 bar

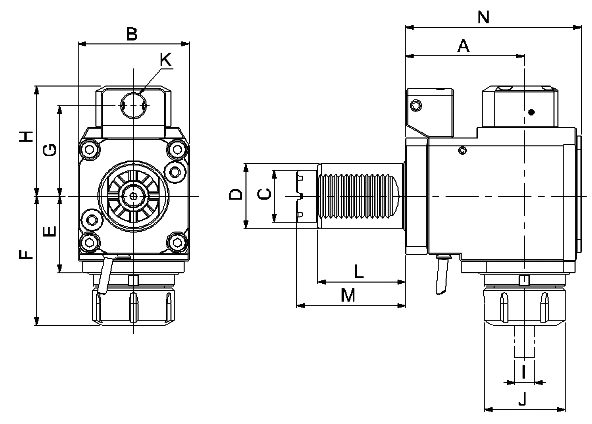

| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | N.W. (KG) |
| THB-B05.65-40DI | 65 | 76 | 32 | 40 | 49 | 81.5 | 63/70 | 74 | ER32(3~20) | 50 | 16 | 51 | 68 | 101 | 5.1 |
Unit:mm
