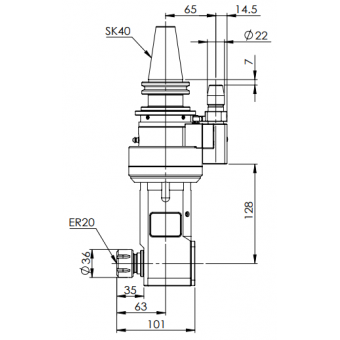

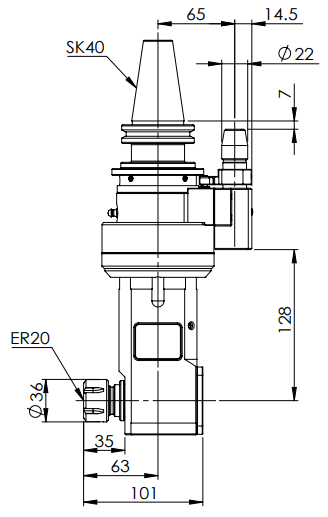

◎?SK40-ER20 90° Angle Head-Longer (AHD Type)
◎?Run-out ： 0.002 mm
◎?Material ： Ductile Cast Iron
◎?R.P.M. ： Max. 4000 RPM
◎?Torque ： Max. 25 Nm
◎?Drilling : Max. 12 mm
◎?Tapping : Max. M10
◎?Gear Ratio ： 1：1
◎?Standard Accessory： Hook Spanner, ER Wrench, ER Nut
◎?Output Rotation ： Reverse to Input Rotation
◎ The body is made of Ductile Cast Iron.
◎ High strength steel; stable machining.
◎ The AHD?series is suitable for firm and fast face milling.
